Installation & Commissioning
Professional installation lays the foundation for stable operation. Connections, functions, and safety are checked to ensure that your unit works correctly and reliably from the very first moment.

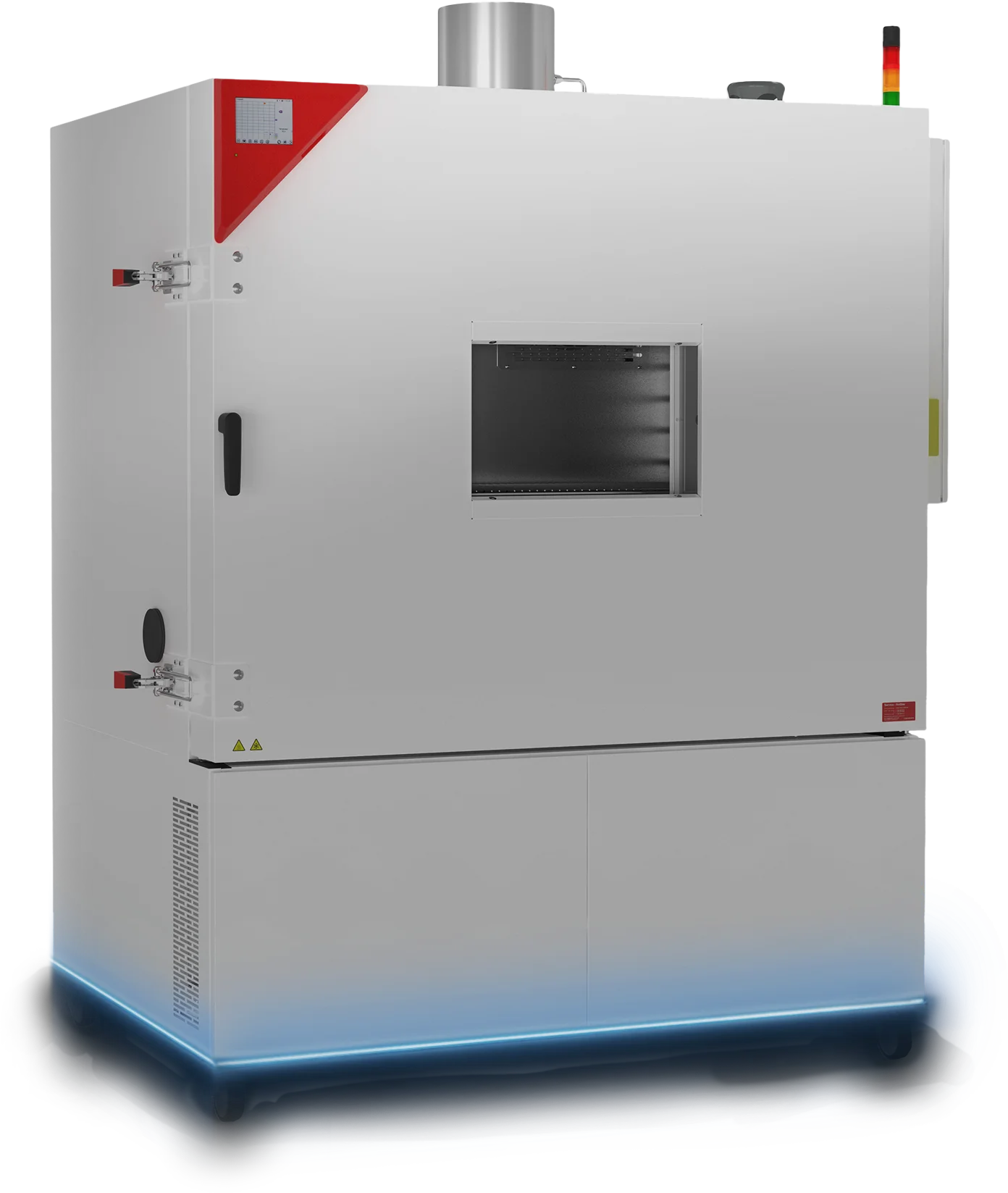

Battery test chambers
for cells, modules, or battery systems
Safe test environments for battery testing
BINDER battery test chambers are designed to simulate such scenarios in a controlled and reproducible manner, particularly when energy storage devices are frequently operated under extreme load conditions, for example, for aging tests, performance tests, or stress tests.
Overview of battery test chambers
BINDER battery test chambers offer modular safety packages in accordance with EUCAR hazard levels, tailored to the test specimen and risk level. Typical components include independent temperature limitation (class 2), pressure relief, inert gas connection, or controlled inerting, as well as optional CO₂ cooling and purging systems. Gas detection and visual and acoustic warning signals complete the concept. Monitoring, remote access, and integration into existing setups support networked test laboratories.
| Applications | Aging tests, performance tests, stress tests |
|---|---|
| Standards |
DIN EN IEC, ISO
Classification according to EUCAR Hazard Level
Hazard Class 0 to 6
|
|
Technical data
|
|
| Temperature range | Drying chamber: up to 300°C, Dynamic climate chamber: -70°C to 180°C; temperature limits determined by safety packages. |
| Humidity range | up to 98% relative humidity |
| Interior volume | 56 to 1,600 liters |
| Average heating-up rate | up to 5.5 K/min |
| Average cooling down time | up to 5.0 K/min |
| Equipment Options | Safety packages A through S, based on the EUCAR Hazard Level classification, can be integrated into BINDER temperature and climate test chambers as needed, subject to a feasibility study |
| Custom solutions | Compatible with cyclers and chillers from other manufacturers |
BINDER service solutions
To ensure that testing processes can be carried out in a stable manner, in compliance with standards, and without unplanned interruptions, BINDER offers structured service solutions for installation and maintenance. This ensures that simulation chambers remain available in the long term and that qualification-relevant processes are technically secure.
Preventive Maintenance
Predictive maintenance reduces unplanned downtime. Components, functions, and safety aspects are checked regularly to detect deviations at an early stage and maintain operational safety.
Technical Support
The help desk and authorized service technicians provide support for technical questions, competently, systematically, and with a focus on solutions.
Service Hotline
The BINDER service hotline provides quick contact to technical support staff and assistance with questions regarding operation, service, and malfunctions.
