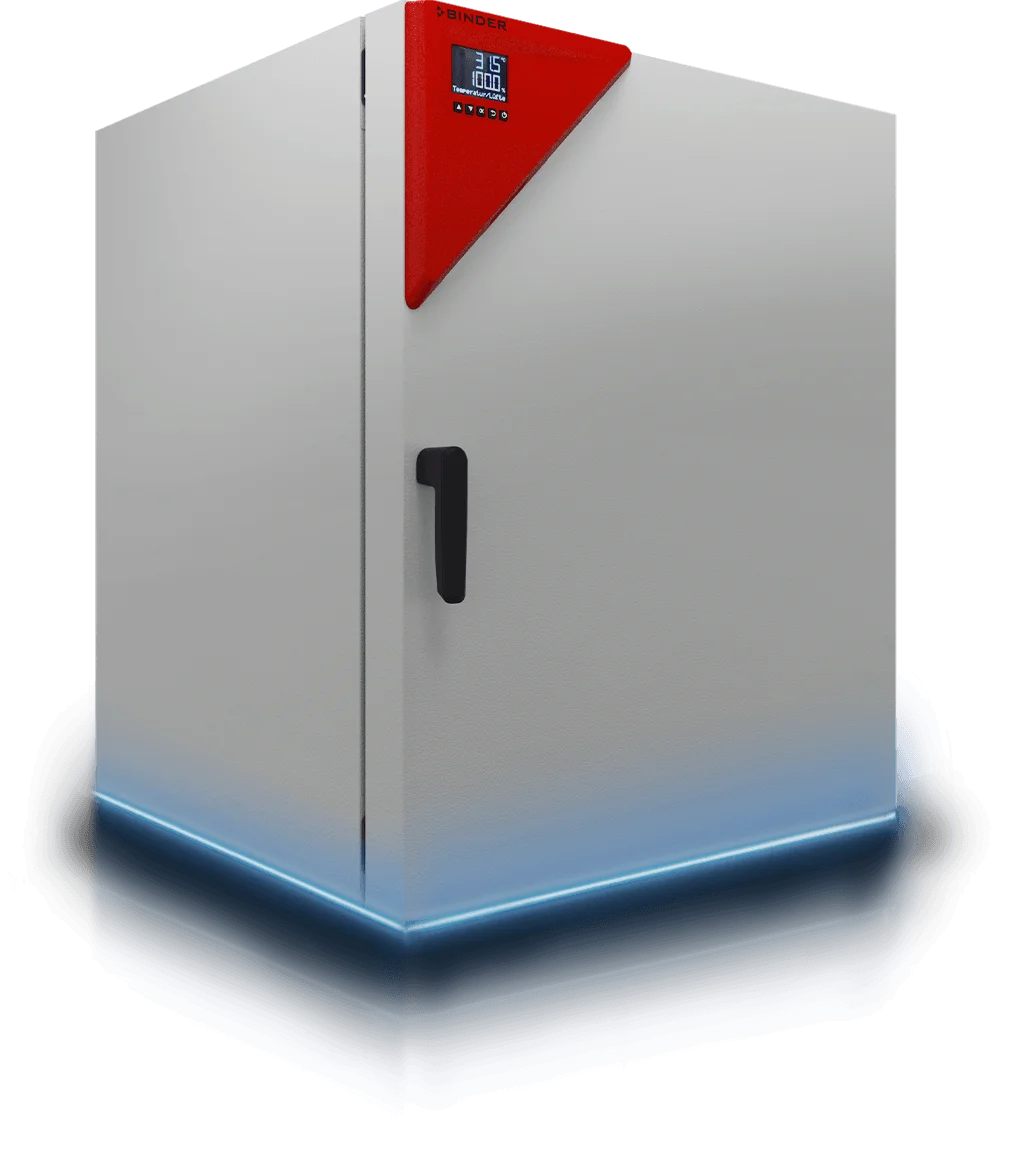

Temperature Test Chambers
for heat treatment of components and materials
Reproducible heat treatment for material-critical processes
For the targeted conditioning of materials, assemblies, and components, temperature test chambers from BINDER create reproducible conditions for drying, tempering, and heat treatment. What makes them special is the combination of precise temperature accuracy and a selection of devices that cover robust standard processes with forced convection and higher control precision. This allows processes to be adapted to the test specimen, thermics, and throughput without losing sight of process stability.
Overview of temperature test chambers
BINDER temperature test chambers guarantee temporal and spatial temperature accuracy with short drying times and rapid heating up to 300°C. The FD and FED series with extended time functions are suitable for robust standard processes such as drying, tempering, and warm storage. The FP and M series with extensive programming options address applications with higher requirements for control precision, process stability, and documentable test results in qualification-related processes.
| Name | FD Series | FED Series |
|---|---|---|
| Standards |
MIL-STD-883 J, Method 1008.2
MIL-STD-810 H, Method 501.5 (Procedure II)
MIL-STD-202 G/H, Method 108A
MIL-STD-810 H, Methods 501.5 (Procedure I)
MIL-STD-810 H, Methods 501.5 (Procedure III)
|
|
|
Technical data
|
||
| Temperature range | up to 300°C | up to 300 °C |
| Interior volume | 23 to 720 L | 56 to 720 L |
| Air change rate at 100°C | 5–80 times per hour | 5–80 times per hour |
| Features | HEPA air filter, Viewing window, reinforced inner chamber, reinforced Fan | |
| Custom solutions | e.g., access ports, heavy-duty grilles, emergency stop switches | |
| Name | FP Series | M Series |
|---|---|---|
| Standards |
MIL-STD-883 J, Method 1008.2
MIL-STD-810 H, Methods 501.5 (Procedure II)
MIL-STD-202 G/H, Method 108A
MIL-STD-810 H, Methods 501.5 (Procedure I)
MIL-STD-810 H, Methods 501.5 (Procedure III)
|
|
|
Technical data
|
||
| Temperature range | up to 300°C | up to 300 °C |
| Interior volume | 56 – 720 L | 56 – 720 L |
| Air change rate at 100°C | 5–80 times per hour | 40–175 times per hour |
| Available features | HEPA air filter, reinforced inner chamber, reinforced Fan | |
| Custom solutions | e.g., access ports, heavy-duty grilles, emergency stop switches | |
BINDER service solutions
To ensure that testing processes can be carried out in a stable manner, in compliance with standards, and without unplanned interruptions, BINDER offers structured service solutions for installation and maintenance. This ensures that simulation chambers remain available in the long term and that qualification-relevant processes are technically secure.
Preventive Maintenance
Predictive maintenance reduces unplanned downtime. Components, functions, and safety aspects are checked regularly to detect deviations at an early stage and maintain operational safety.
Technical Support
The help desk and authorized service technicians provide support for technical questions, competently, systematically, and with a focus on solutions.
Service Hotline
The BINDER service hotline provides quick contact to technical support staff and assistance with questions regarding operation, service, and malfunctions.
